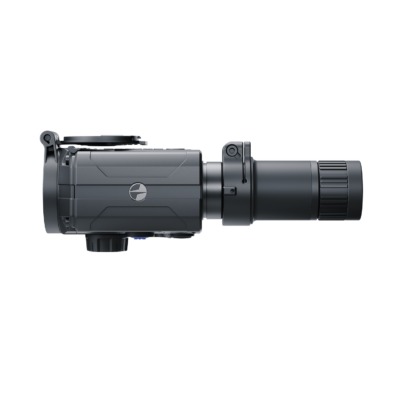

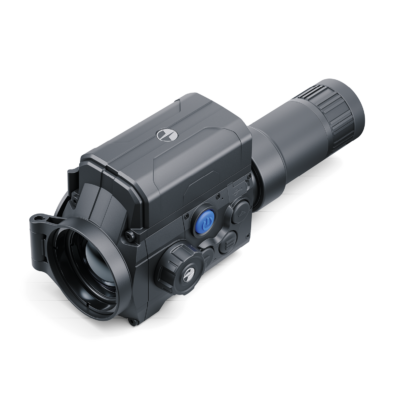

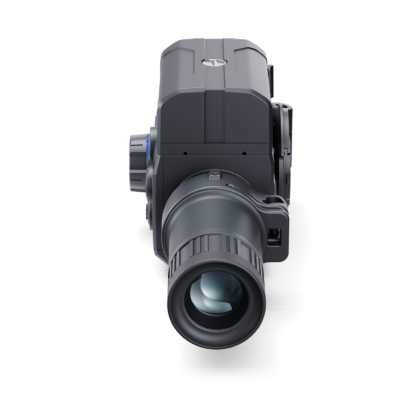

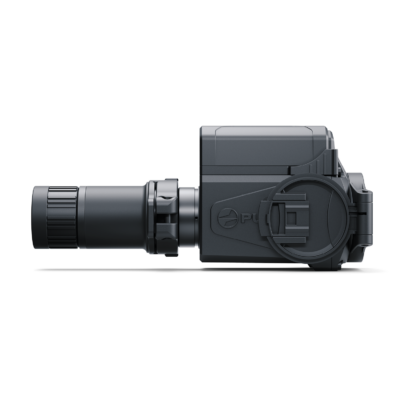

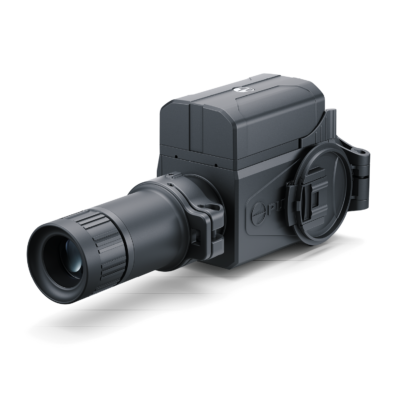

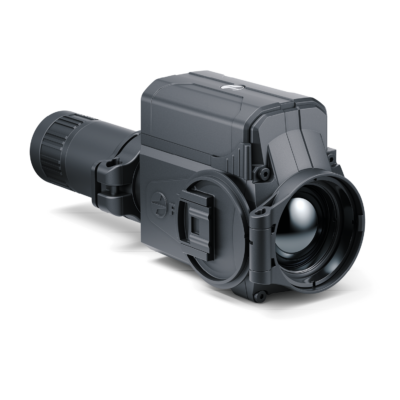

The new Pulsar Krypton 2 XQ35 thermal imaging monocular ushers in the next stage in the Krypton series’ evolution, with a sensitive 384×288, 17 µm, <25 mK NETD thermal sensor that guarantees crisp and incredibly detailed thermal imagery at an astonishing range of up to 1300m.
High Definition Thermal Imaging

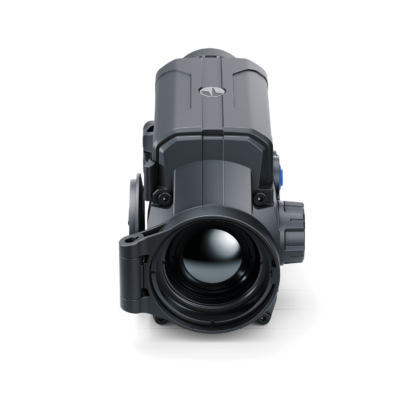

The next generation Krypton 2 XQ35 thermal imaging monocular features a highly sensitive 384×288, 17 µm, <25 mK NETD thermal sensor, which, when working with the extremely powerful 35mm f1.0 fast aperture germanium objective lens, will provide stunning thermal imagery and an astonishing detection range of up to 1300m in complete darkness.
These powerful optics will enable a user to easily identify an animal and their anatomical features, along with the most minute of details (such as branches, leaves, grass, and terrain) in any weather conditions — working effectively in heavy rain, dense fog, snow, and in environments with high levels of humidity.
Full-HD AMOLED Display
Thermal imagery is presented in crystal-clear detail onto the Krypton 2 XQ35’s new full-HD AMOLED display, offering a high-contrast picture along with a wide dynamic range and energy saving characteristics. This display’s fast response time ensures an image that remains smooth and observes objects in high definition even when in motion or when the device is in freezing conditions.
Sensitivity Amplification Levels
The Krypton 2 XQ35 offers three sensitivity amplification levels, which, when combined with their new filtration algorithms with fine brightness and contrast adjustments, offer greater identification capabilities in adverse weather conditions and in challenging environments. These sensitivity amplification settings help to better define an animal’s trophy features whilst presenting better rendering of objects and background in the visible field of view.
Bluetooth Remote Control

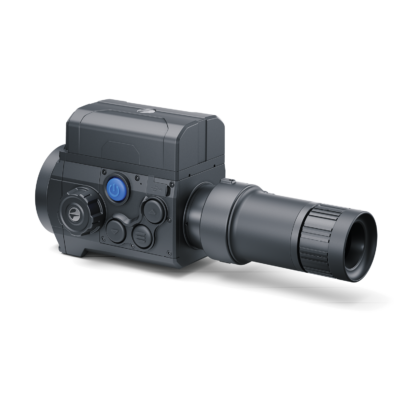

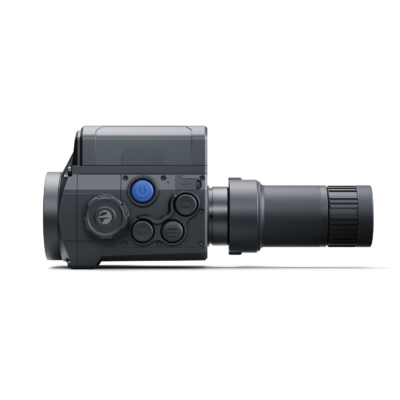

The ergonomically designed Pulsar BT wireless Bluetooth remote control duplicates the buttons found on the side of this thermal imaging monocular, allowing users to activate all of the most used functions with ease, and a rotating and pressable encoder enables fast device adjustments and menu navigation. This remote control can be used with both gloved and bare hands, and makes operation of the device especially convenient for left-handed users.
Magnesium Alloy Housing
A rugged magnesium alloy bodyshell protects the Krypton 2 XQ35 from scrapes, drops, bumps, shocks, and heavy vibration loads whilst working as a heatsink, increasing the operational stability of the device by effectively dissipating any heat caused by the internal electronics.
Adding to its robust characteristics and enhancing its ability to perform well in a myriad of weather and environmental conditions, this thermal imaging front attachment is also IPX7 rated — protecting the device from any water ingress and ensuring it remains operational after a dunk in 1m of water for up to 30 minutes.
This thermal imaging monocular will remain fully operational in extreme temperatures, providing a reliable performance and excellent thermal informativity in both freezing temperatures reaching down to -25°C and in environments exceeding +50°C.
Extended Battery Life
With a rechargeable IPS7 Li-ion battery, the Pulsar Krypton 2 XQ35 boasts an operation time of up to 11 hours (depending on temperature) — keeping the device running for extended periods of observation and easily remaining operational the whole night through on just a single charge.
8 Colour Palettes
Discover a choice of eight colour palettes designed to optimise the observation experience by allowing the device to adapt to specific tasks and achieve the best possible image in ever-changing environments.
For object detection, White Hot, Black Hot, and Red Hot are most effective; Rainbow and Ultramarine is best for object recognition and identification; and Red Monochrome, Sepia, and Violet are most suitable for long observation periods in darkness.
Built-In Still Image & Video Recording
Capture every single memorable moment at just the touch of a button with the Krypton 2 XQ35‘s built-in still image capture and video recording capabilities. The generous 16GB of on-board storage will allow for hours of video and tens of thousands of still images to be save directly onto the device. An additional 16GB of FREE Cloud storage is available to all users upon registering to the Pulsar Stream Vision 2 app.
Dual-Band Wi-Fi
The Krypton 2 XQ35‘s dual-band Wi-Fi compliments the standard 2.4 GHz smartphone connection frequency range with an effective 5 GHz range, greatly improving the bandwidth — offering faster data transfer, better noise immunity, and improved connection stability. This results in a more productive, easier to use operation when connected to a smartphone.
Stream Vision 2
Connecting this thermal imaging monocular to the free Stream Vision 2 mobile app provides the user with a variety of intuitive features and functionalities, including the ability to use a mobile phone or tablet as a second screen, remote control of digital functions, viewing and sharing videos and still images, remotely installing all the latest firmware updates, and much more. What’s more, users will receive a generous 16GB of free cloud storage on which to keep their video recordings and still images. Among other intuitive functions, the Stream Vision 2 offers:
- The ability to use a connected smart device as a wireless remote, so users can control and adjust the device settings. Users can then see all the changes made on the smartphone or tablet screen in real-time. Users are also able to record footage or take still images using the connected device.
- The ability to browse through all photos and videos recorded on the Krypton 2 XQ35. Users can download and even share these files with friends.
- The option to remotely update the Krypton 2 XQ35’s firmware, ensuring it is kept up to date and offering all of the latest features and functionalities.
To see more of our Pulsar products click here.
To see more about the Krypton 2 XQ35 click here.
Pulsar Krypton 2 XQ35 Specifications
| Sensor Type | Uncooled |
| Sensor | 384 x 288, 17µm, <25mK NETD |
| Frame Rate | 50 Hz |
| Objective Lens | 35 mm f1.0 |
| Magnification in Monocular Mode | 3x |
| Field of View | 10.7° x 8.0° |
| Display | 1920 x 1080 AMOLED HD |
| Detection Range | 1300 m |
| Video Recording | Yes, with Audio |
| Still Image Capture | Yes |
| Video / Photo Resolution (Pixels) | 912 x 688 |
| Video / Photo Format | .mp4 / .jpg |
| Built-In Memory | 16GB |
| Wi-Fi | Built-In |
| Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Wi-Fi Frequency | 2.4 GHz / 5 GHz |
| Bluetooth | Yes |
| Wireless Protocol | BLE 4.2 |
| Wireless Standard | IEEE 802.15.1 |
| Bluetooth Frequency | 2.4 GHz |
| Degree of Environmental Protection, IP Code (IEC60529) | IPX7 (Waterproof) |
| Operating Temperature Range | -25°С – +50°С |
| Max. Recoil Resistance on Rifled Weapon | 6000 Joules |
| Shock Resistance on Smooth Bore Rifles (Calibre) | 12 |
| Remote Control | Pulsar Bluetooth Remote (Included) |
| Supported Applications | Stream Vision 2 |
| Power Output Voltage | 3.0 – 4.2 V |
| Battery Type | IPS7 Li-Ion Battery Pack |
| Capacity | 6400 mAh |
| Operating Time on Battery Pack (at t=22°C) | Up to 11 Hours |
| External Power Supply | 5V, 9V (USB Type-C Power Delivery) |
| Body Material | Magnesium Alloy |
| Dimensions | 201 x 73 x 83 mm (with Pulsar 3x20B monocular) |
| Weight | 400 g (w/o Battery) / 540 g (w/ Battery) |
