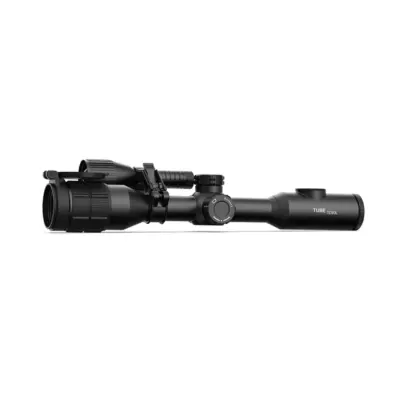

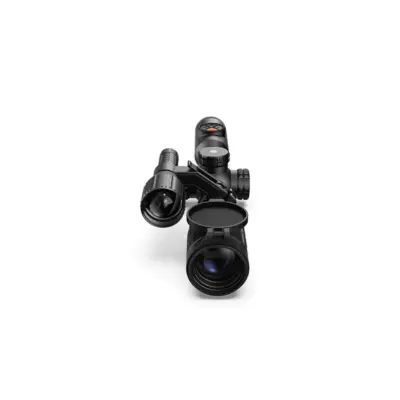

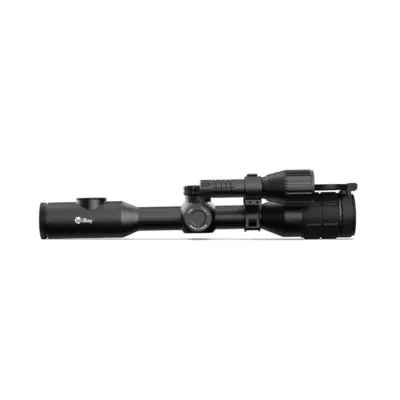

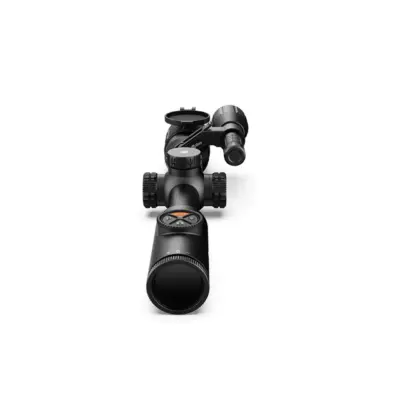

InfiRay TD50L V2 Digital Day/Night Rifle Scope


SKU: IRAYTD50L Category:

Availability: 1 in stock

The InfiRay TD50L V2 is a high-performance digital night vision riflescope designed in the traditional day optic form to accommodate optimal use on bolt action rifles. The TD50L is the perfect digital night vision optic for the discerning hunter looking for classic aesthetics and excellent low-light sensor sensitivity. Featuring a 13+ hour run time and an IP67 rating, the TD50L can last all night in any hunting conditions.

Excellent NV Capability

Combination of 50mm/F1.2 large and quality objective lens with 1440×1080 resolution CMOS HD sensor with ultra-low light performance and high definition display, powerful IR Illuminator, integrated highly effective algorithm, etc. make the InfiRay TD50L the perfect digital night vision riflescope with excellent nighttime sensitivity and night vision capabilities for users, even on moonless nights.

Three Image modes

There are three image modes inside of the TD50L; Day mode, Moon mode and Star mode. Under the Day mode there is an extraordinary display of true colors to the authentic scene in visible sight. Under the Moon and Star Mode TD50L not only seeks to offer users ultimate nighttime visibility but also offer a clear imaging display in the view range of observation without any delay. The specially designed Star mode still creates a clear night vision range even in ultra-low-light conditions or a moonless night.

600 m Nighttime Viewing Range

The TD50L is a perfect nighttime tool for detecting targets such as a wild boar or deer at distances ranging up to 600 meters. This is a result of the combination of the best night-time sensitivity in its class, its HD resolution display, a wide selection of brightness adjustment, and the powerful external detachable IR for moonless nights, etc.

4x-16x Smooth Continuous Zoom

The base magnification of TD50L V2 increases by four times – from 4x to 16x.  Compared with normal integrally multiple zoom-in, TD50L allows users to zoom continuously and gradually from 4x to 16x. The user can also customize their field of view. A flexible zoom-in and out function can be handled in your hands.

Dual Power Supply System

TD50L V2 digital NV riflescopes are powered with two kinds of rechargeable batteries. The scope has a built-in 6600mAh battery and the other replaceable 18500 battery located in the battery compartment which supports a over 13H battery life. Once the replaceable battery is out of charge, the riflescope switches automatically to the built-in battery. The replaceable 18500 battery can be removed and replaced in seconds without the riflescope going through intermediate shutdown.

Compatible with Standard 30-mm Scope Rings

The newly designed TD50L V2 can be installed on standard 30mm scope rings. Therefore the scope can be easily mounted on a rifle’s Picatinny rail system with simple operation, stability and reliability. It is a classic yet also a practical in design.

Powerful 850nm/940nm IR Illuminator

The TD50L V2 is supplied with an optional 850nm or 940nm IR illuminator to allow for increased illumination while staying undetected to the target. Three adjustable IR power levels allow the user to choose their preferred illumination level. You may want to adjust this based on the range to your target, or environmental conditions.

IP67 Protection Rate

The TD50L features an IP67 level of protection, which means it is fully waterproof and dustproof. The riflescopes are able to operate in high humidity, heavy rain, or precipitation of any intensity. Each TD50L is also able to cope with 1m-deep submersion.

Picture-in-Picture Mode (PIP)

The Picture-in-Picture function in the TD50L V2 improves aiming accuracy by providing a 2x-magnified image of the reticle area at the top of the display. Users can zoom in on a target while maintaining visibility of the entire field of view for increased situational awareness.

New Freeze Zeroing Function

A new Freeze function is inside the TD50L V2 . The biggest advantage brought by this special function is the flexibility on moving your guns when zeroing and without any influences on the zeroing data that is kept inside of storage.

Integrated Wi-Fi and InfiRay APP Support

The built-in Wi-Fi module of TD50L V2 allows users to connect NV riflescopes with devices using the InfiRay Outdoor APP. This connection will allow users to perform photo and video transfer/download, as well as other features options under development.

Useful Reticles Design

TD50L V2 digital night vision riflescope has 6 optional basic reticles to fit users’ different preferences. When users zoom in or out the screen display, the reticle scales up or down proportionally. Therefore the reticle remains constant in dimension and details, allowing users to adjust for various shooting distance needs.

Explore our other InfiRay thermal and night vision optics here.

InfiRay TD50L Specifications
Sensor Resolution, pixels CMOS 1440×1080
Pixel Size,μm 4×4
Frame Rate, Hz 50
Objective Lens, mm 50 (F1.2)
Field of View,º 6.6×4.9
Magnification, x 4x~16x (4x Zoom)
Eye Relief, mm 70
Display 1280×960 LCOS
Capture/Video Record Resolution, pixels 1280*960
Detection Range, m 600
IR Illuminator Wavelength 850nm /940nm (optional)
Battery Built-in 6600mAh and a replaceable 18500 Battery
Max. Operating Time (at temp.=22ºC), h* >13
External Power Supply 5V (Type C USB)
Tube Diameter(for the Mounting Rings) , mm 30
Max. Recoil Power on Rifled Weapon, g/s² 1000
Degree of protection, IP code (IEC60529) IP67
Built-in Memory, GB 16
Weight (without replaceable Battery), g <1000
Dimension, mm 395×85×75
APP/Wi-Fi Support (InfiRay Outdoor)
