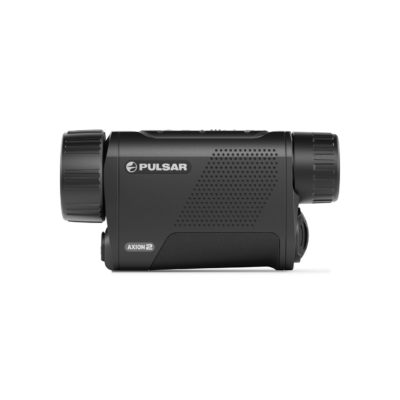

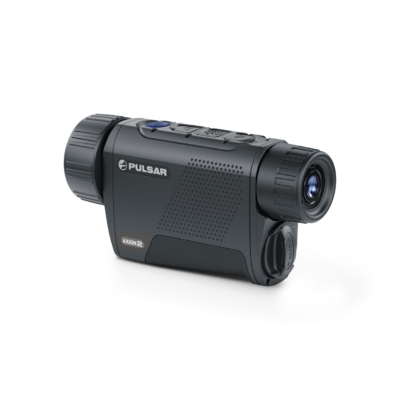

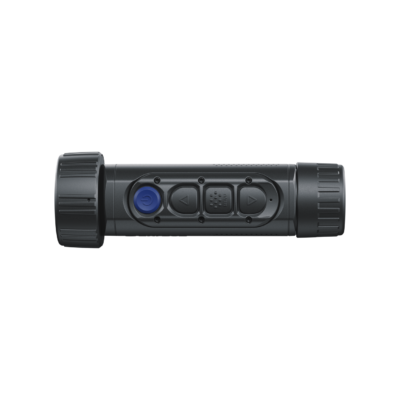

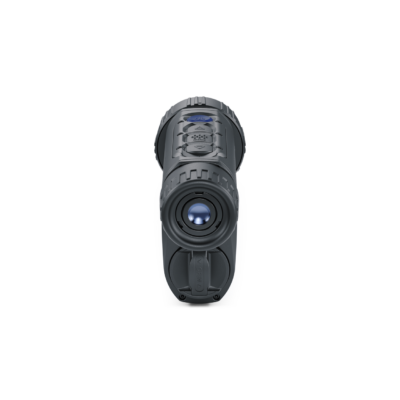

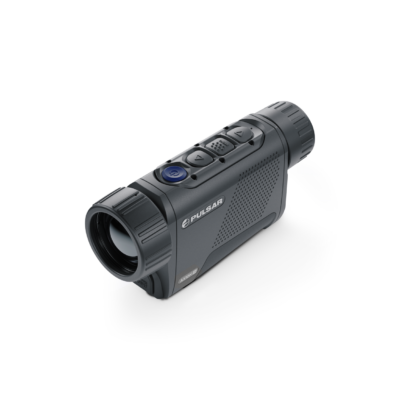

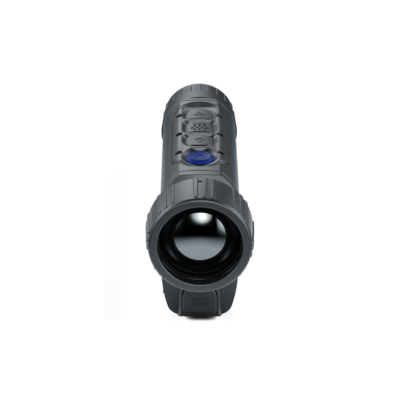

Pulsar Axion 2 XG35


SKU: PUL-77476 Category:

The Pulsar Axion 2 XG35 ‘s greatly improved image quality, extended battery life, improved algorithms, and impressive dual band Wi-Fi range provides an incredible thermal imaging experience. With a wide range of features — including a powerful XG sensor — packed into a compact and lightweight design, it is easy to grip and can be operated with ease, regardless of right or left-hand orientation.

Highly Sensitive Thermal Sensor

The Axion 2 XG35 features a highly sensitive 640×480, 12 µm, <40mK NETD thermal sensor, combined with a 50Hz refresh rate and a powerful objective lens, to provide an impressive 1750m detection range of a standard 1.8m object in total darkness, withstanding even the most difficult, adverse weather conditions, such as fog, rain, and high levels of humidity.

Fast Aperture 35mm f1.0 Lens

The focusable fast aperture germanium 35mm f1.0 lens uses high infrared transmission in the LWIR range; and, due to the precision with which the optical elements within the lens have been manufactured, the Axion 2 XG35 presents a level of image detail that is consistently clear and well distinguished.

Variable Magnification

Offers 8x digital zoom with a base magnification of 2.5x -20x for better object recognition at considerable distances. This zoom can change either by x2 steps, or in continuous motion to optimise the generous 12.5°х9.4° field of view.

AMOLED Display

A high contrast VGA-resolution AMOLED display — which features enhanced colour rendering — provides a clear and smooth picture whilst on-the-move.

Picture in Picture (Pip) Mode

Picture in Picture (Pip) mode allows the user to display a zoomed in zeroing frame at the top of the display, in which the observation area can be magnified by x2 or x4, whilst retaining complete visual control over the field of view.

Enhanced Image Processing

Pulsar’s enhanced image processing algorithms provide high quality rendering of both observed objects and backgrounds. Three available levels of signal amplification, combined with a connected smoothing filter and fine brightness and contrast adjustments, provide the user with greater opportunities in terms of long-range detection under a variety of different weather and temperature conditions.

Calibration Modes

Three calibration modes are available (Manual, Semi-Automatic, and Automatic), equalizing the microbolometer temperature background — eliminating defects and ensuring a consistent image quality.

8 Colour Palettes

A choice of eight colour palettes provides the user with the ability more effectively observe their field of view, optimizing the Axion 2 XG35 for specific tasks and allowing it to react to changing observation conditions.

For object detection, use White Hot, Black Hot, and Red Hot; Rainbow and Ultramarine are most effective for object recognition and identification; and Red Monochrome, Sepia, and Violet are best for long periods of observation in total darkness.

Up to 7 Hours Battery Life

The Axion 2 XG35 uses an APS5 rechargeable battery, which offers up to 7 hours of battery life on just a single charge (depending on temperature).

Removing and replacing the battery is achieved easily in mere seconds thanks to the intuitive design, and recharging is as simple as placing the battery into its charging dock or plugging directly into a PC/household power system via a USB-C cable.

Display Off Mode & Instant Start-Up

Display Off mode will temporarily reduce screen brightness to an absolute minimum, effectively powering off the screen whilst all other systems within the device remain operational, saving battery in those moments where the device is not in use but may be needed quickly. Restarting the device with instant-start-up is as quick and easy as powering the display back on and takes only three seconds to become fully operational again.

Magnesium Alloy Housing

Despite its compact size, the Axion 2 XG35 has been designed with constant and hard use in mind. The magnesium alloy housing, though extremely light, is also incredibly strong — reliably protecting the internal components from shocks, drops, moisture, heat, or cold. This housing also acts as a heat sink, removing heat generated by the internal electronics, minimizing image noise, and increasing operational consistency over long periods of observation.

IPX7 Waterproof

The IPX7 waterproof rating means that this thermal imaging monocular will work in heavy rain, high humidity, and also will even withstand immersion in water to a depth of 1m for up to 30 minutes.

Operating Temperatures

Designed for use within a wide variety of temperatures and environments, operating without issue in extreme temperatures, from -25 to +50°C.

Built-In Video & Still Image Recorder

Capture once-in-a-lifetime moments with built-in video and still image recording capabilities with audio. The Axion 2 XG35’s 16GB of internal memory is capable of storing hours of videos and tens of thousands of still images at just the touch of a button.

The user can easily copy footage onto a computer using a USB-C cable, or, with the built-in Wi-Fi module and Stream Vision 2 connectivity, the user can easily view and share memorable moments straight from the cloud.

Built-In Wi-Fi Module

The Pulsar Axion 2 XG35 will also compliment the standard smartphone 2.4 GHz Wi-Fi frequency range with an effective 5 GHz connection range, vastly improving the bandwidth and connection stability, as well as providing a faster rate of data transfer and noise immunity, all for more a more reliable communication between thermal imager and smartphone.

Stream Vision 2

Connecting the Stream Vision 2 mobile app will provide a variety of intuitive features and functionalities, including the ability to use your mobile phone or tablet as a second screen, remote control of digital functions, viewing and sharing videos and still images, remotely installing all the latest firmware updates, and much more. What’s more, users will receive a generous 16GB of free cloud storage in which to keep their video recordings and still images. The app is available for Apple and Android devices on the Apple AppStore and the Google Play Store respectively.

To see more of our Pulsar products click here.

To see more about the Axion 2 XG35 click here.

Pulsar Axion 2 XG35 Specifications
Sensor 640×480 12µm <40mK NETD
Refresh Rate 50Hz Refresh Rate
Detection Range 1750m
Lens 35mm f1.0
Magnification 2.5x -20.0x
FOV 12.5°х9.4°
Viewfinder 1024×768 AMOLED
