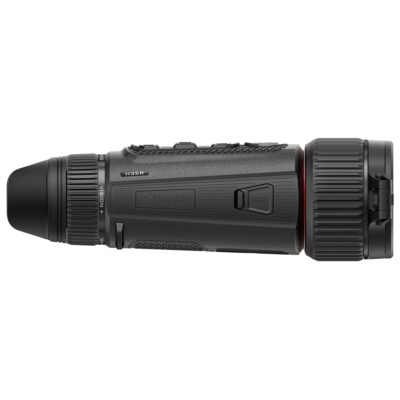

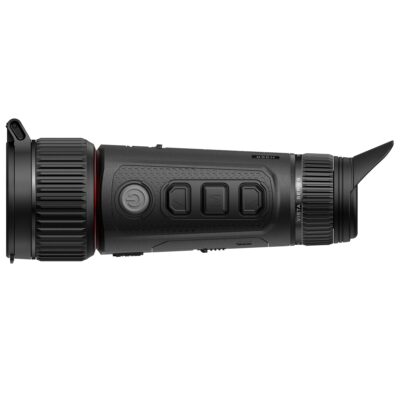

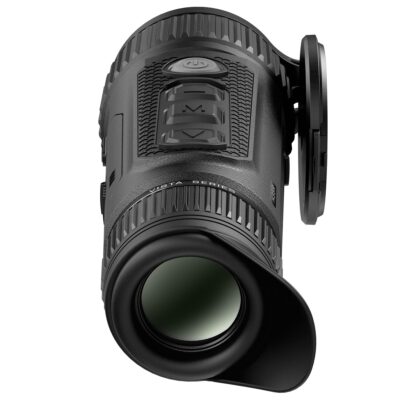

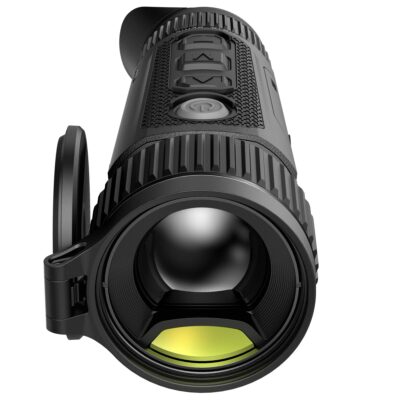

The NocPix Vista H35R thermal imaging monocular is designed for use both at night-time and during the day and provides exceptional image quality even in adverse weather conditions (fog, smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target detection. VISTA thermal imagers are designed for various applications including hunting, observation, security, terrain orientation, search and rescue operations, etc.
The NocPix Vista H35R Vision+ System, with its 2560×2560 AMOLED display and 8mm exit pupil diameter, offers an immersive observational experience. Equipped with a superior sensor and integrated LRF, Vista delivers top-tier performance in the industry. Its user-friendly design and improved battery solution make it the ideal companion for overcoming outdoor challenges.
Integrated LRF: Precision meets Portability
Our 2-in-1 integrated rangefinder (LRF 1200m) seamlessly blends aesthetics with true optical axis alignment. This lightweight, compact design ensures minimal lens area usage while maintaining flawless image quality.
60Hz Frame Rate: Seamless Motion Capture
The Vista equipped with a 60Hz detector, offers superior fluidity, allowing for the precise capture of moving animals and high-speed scenes. This significant upgrade from 50Hz ensures smoother and more accurate visuals.
F0.9 lens: Enhanced Light Intake
The F0.9 lens is designed to enhance light intake by 20%, significantly improving image brightness and quality compared to traditional F1.0 lenses. This advancement ensures that every detail is vividly clear, making Vista the perfect companion for night observations.
Long-Lasting Power
Equipped with two replaceable IBP-7/4400mAh battery packs, our device offers impressive batteries life of up to 11 hours, still maintain 90% battery life at -20 ℃ environment. These batteries can be easily placed inside the device and charged directly, ensuring extended operation.
Various Colour Palettes
The Vista offers 7 distinct colour palettes, including red and pure green monochrome modes. These eye-friendly options help reduce visual fatigue, ensuring prolonged use without strain.
User-Friendly Design
Vista’s silent buttons ensure quiet use in the dark, while the rotatable eye mask prevents light leakage, keeping your presence concealed from animals. The fully wrapped TPU faux leather texture provides a comfortable grip, making extended use effortless.
Box Contents
- VISTA series Thermal Imaging Monocular
- Portable bag
- Battery pack IBP-7 × 2
- Data cable
- Neck Strap
- Lens cleaning cloth
- Quick start guide
NocPix Vista H35RThermal Monocular Specification
| Model | NPMON-VISTA- H35R |
| Magnification | 3~28 |
| Objective Lens | 35mm ƒ0.9 |
| Battery | Replaceable li-ion battery pack IBP-7 / 4400mAh |
| Weight | 22.58oz / 640g |
| NETD, mk | ≤ 15 |
| Resolution | 640 x 512 |
| Pixel Size | 12MP |
| Frame Rate | 60fps |
| Field of View | 12.5 x 10.0 |
| Field of View (Liner) | 22 x 18 |
| Dimensions | 7.48 x 2.64 x 3.11″ /190 x 67 x 79mm |
| Thermal Sensor | 640 x 512 12μ |
| Detection Range | 1800m |
| Eye Relief | 25 |
| Exit Pupil Diameter | 8 |
| Dipoter | -4 ~ +6 |
| Display Type | AMOLED |
| Display Resolution | 2560 x 2560 |
| Max Operating Time | 5.5hrs |
| WiFi | YES |
| Mic | YES |
| Memory Card Capacity | 64GB |
| IP Rating | IP67 |
| Max Operating Temperature | -20 ~ +50 °C |
| Range Finding Distance | 1200 |
| Laser | Class 1 |
