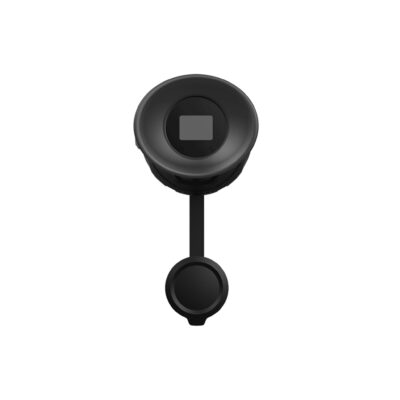

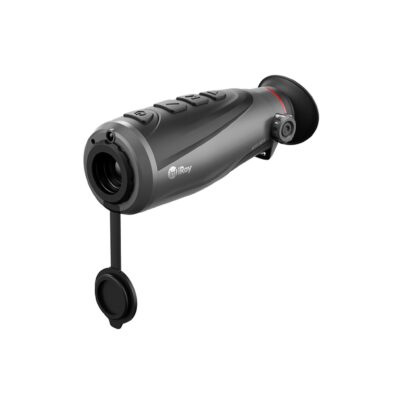

InfiRay AP09 Thermal Monocular

£549.99

SKU: IRAYAP09 Category:

The InfiRay AP09 Thermal Monocular is part of the AFFO Series handheld thermal imaging monocular. This an entry-level thermal monocular for hunting users, featuring both a fashionable appearance and a more compact size. The AFFO Series uses a self-developed 12μm detector to produce crisp images and supports photo taking and video recording with its built-in high-speed 32GB storage capacity.

High-performance Detector
The AFFO Series adopts 12 um uncooled Vox thermal imaging sensor, the self-developed high-performance sensor enables crisp 640×400 HD images. Detection range out to 460m.
New Appearance Design & Compact Size

Rounded curve-design body fits human hand shape, making it more comfortable to hold. With the compact size, it is easier to carry with along your adventure. It is lightweight and only weighs 340g!

HDMI interface to display HD videos on external devices

Designed with HDMI interface (high-definition multimedia interface) uses full digital signal transmission, which not only provides full digital video signal, but also transmits audio at the same time. This device can be directly connected to HD screens, laptops, etc. for high-quality display.

Long Battery Life

Low power elements used in AFFO Series provide sufficient operation time. Up to 9.5 hours operational battery life.

Additional Practical Functions

The AFFO Series features additional practical functions including stadiametric rangefinding and PIP. Its adapter is equipped with multiple travel charging headers to meet the needs of use in different countries and regions.

  • Stadiametric Rangefinding:  Facilitate confirmation of prey distance and provide position reference for hunting.
  • PIP: The screen of cursor position is magnified twice to highlight the target and assist in observing the target details.
More image modes to cope with different scenarios

Hot target highlight mode provides better object highlighting capability with more options of white hot, black hot, red-hot and colour palette. Wider detection and operating temperature ranges with hotspot tracking function.

Upgraded lens protection

Durable rigid plastic lens cap with higher hardness and impact resistance;

Upgraded waterproofing

External screen is used in rainy days for outdoor scenarios to prevent water flowing into the interface.

32GB Built-in Memory

The 32GB memory of AFFO Series makes it possible to record all night, meeting the requirements of whole-hunting process recording.

Explore our other InfiRay thermal and night vision optics here.

InfiRay AP09 Thermal Monocular Specifications
MODELAP09
TypeUncooled Vox
Resolution256 × 192
Pixel Pitch, μm12
NETD, mK≤40
Refresh Rate, Hz25
Objective Lens, mm9
Field of View, °19.4 × 12.2
Magnification, x1.3
Digital Zoom, x1 / 2
Diopter, D-7 ~ +2
Detection Range, m
(TargetSize:1.7m×0.5m,P(n)=99%)
460
Display TypeAMOLED
Display Resolution640 × 400
Battery Type / Capacity /
Output Voltage
Built-in Li-ion Battery /3.6Ah / 3.6V
Working Hours(22°C), h*9.5
External Power Supply5V(TypeC)
Ingress Protection RatingIP67
Memory Capacity, GB8
Wi-Fi / APPSupport(InfiRayoutdoor)
Operating Temperature, ºC-20 ~ +50
Weight, g<340
Dimensions,mm160 × 60 × 60
