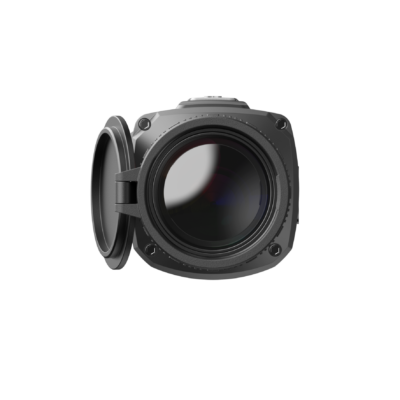

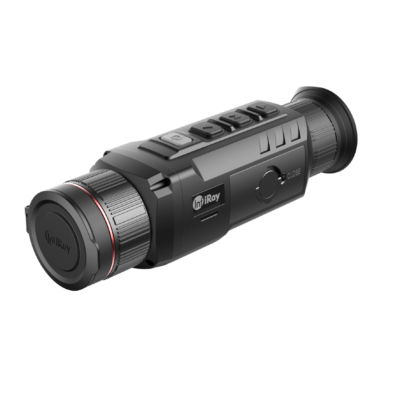

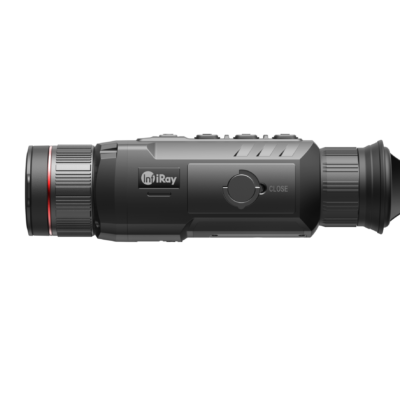

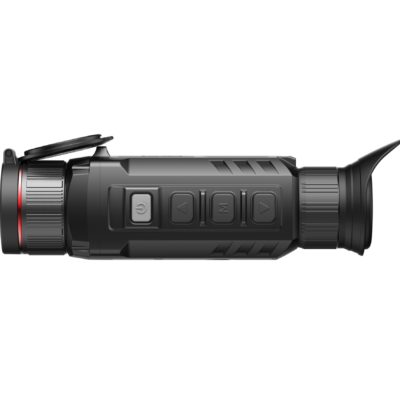

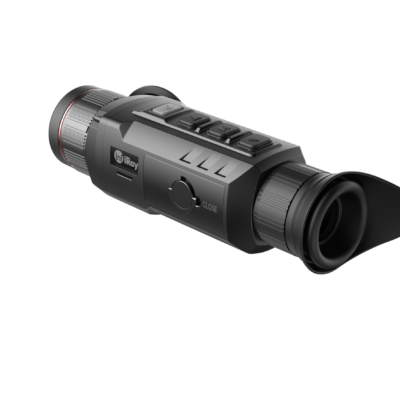

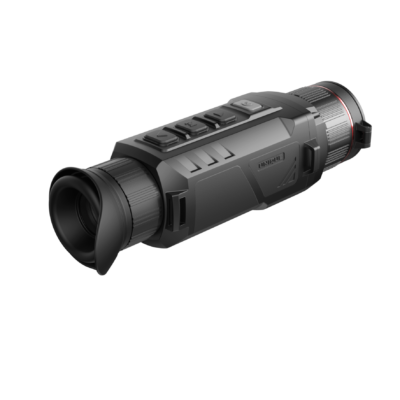

InfiRay UH50 Thermal Monocular Unique Series


SKU: IRAYUH50 Category:

The InfiRay UH50 Thermal Monocular. UNIQUE series is a next-level professional handheld thermal imager. Equipped with a high-performance infrared sensor, full-color high-resolution HD AMOLED display ,and up to ×20 eyepiece, it prides itself on an excellent imaging effect. Paired with a replaceable 4400mAh high-capacity lithium-ion battery pack, the UNIQUE series ensures up to 2×10 hours of endurance.

Full-screen high-definition AMOLED display

The UNIQUE series is designed with a built-in 0.4-inch full-color HD display, up to 1440×1080 in resolution. Coupled with the ×20 eyepiece, it presents a clearer and more comfortable vision to greatly improve the human eye observation experience. Up to ×4 basic visual magnification plus ×4 electronic amplification enhances significantly the observation experience. 2600m detection range.

4x Base Magnification

A high-resolution AMOLED display with a 4x-16x high-magnification optical system provides clearer picture quality and a more excellent observation experience. The maximum 20x digital zoom also offers

Ease of Use

UH50 keeps the pocket-size design, IP67 waterproof & dust-proof rating, while optimizing the button material. The improved silicone buttons can still retain soft touch in cold temperatures.

The comfortable eye cover ensures that you won’t disturb your target at night by leaking light. It also fits your eyes perfectly for comfortable viewing.

HDMI interface to display HD videos on external devices

Designed with HDMI interface (high-definition multimedia interface) uses full digital signal transmission, which not only provides full digital video signal, but also transmits audio at the same time. You can connect this device directly to HD screens, laptops, etc. for high-quality display.

Long Battery Life at Lower Temperatures

Using low-power components, and lower power consumption, with a standard additional battery pack and a replaceable 4400mAh large-capacity lithium battery pack, battery life of 2×10 hours.

More image modes to cope with different scenarios
The built-in Ultra-clear mode thermal technology of InfiRay is designed for inclement weathers such as rainy, snowy, foggy days, etc., increase thermal imaging clarity and overall details.
5 Color Palettes

The Unique series provides more than 5 color palettes for true colorized temperature mapping, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.

32GB Built-in Memory

The UH50 comes with 32GB of memory for storing 57,000 images or 48 hours of video. You can easily send all your videos and images and transfer them to your smartphone at lightning speed via app.

Explore our other InfiRay thermal and night vision optics here.

InfiRay UH50 Thermal Monocular Specifications
Detector SpecificationsTypeUncooled Vox
Resolution, pixels640×512
Pixel, μm12
NETD, mK≤ 25
Frame Rate, Hz50
Optical SpecificationsObjective Lens, mm50
Field of view, degree8.8 × 6.6
Optical Magnification, ×4 ~ 16
Digital Zoom1×, 2×,3×, 4×
Exit Pupil Distance, mm20
Exit Pupil Diameter, mm5.5
Diopter, D-5 ~ +5
Detective range, m2600
(Target size: 1.7m × 0.5m, P(n)=99%)
Resolution, pixels1440×1080
BatteryBatteryLi-ion Battery Pack / 4400mAh / DC 3.7V
Service Voltage, V3 ~ 4.2
External Voltage, V5 (Type C)
Physical SpecificationsMax. Operation Time (t=22℃), h★10
Memory Capacity, GB32
Operating Temperature, ℃-20 ~ +50
Weight, g≤650
Dimension, mm205×65×60
