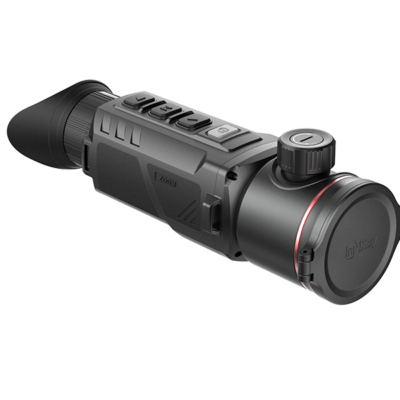

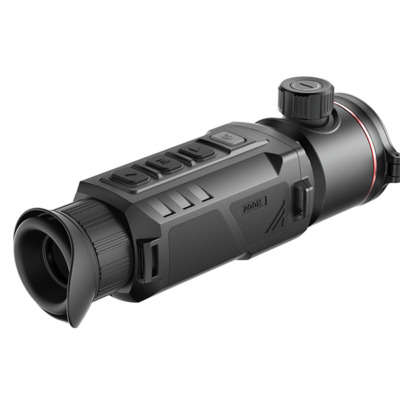

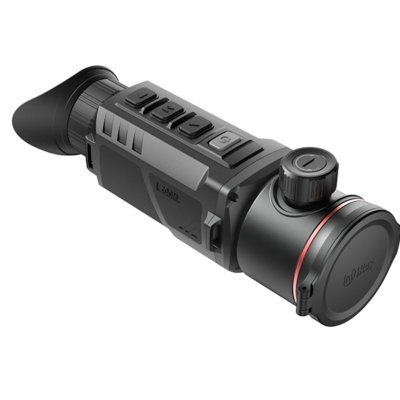

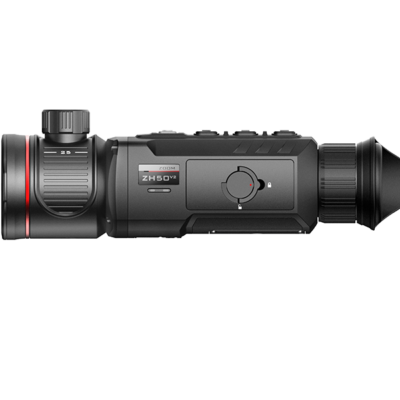

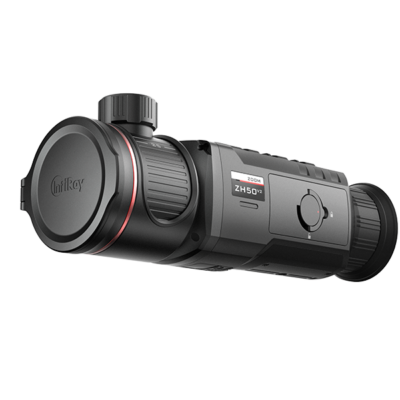

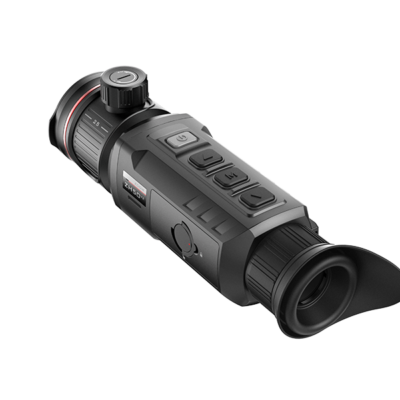

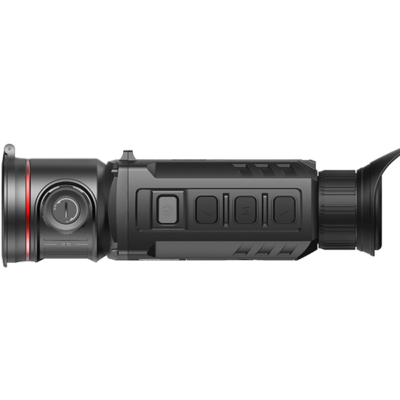

InfiRay ZH50 V2 Thermal Monocular Zoom Series


SKU: IRAYZH50 V2 Category:

Availability: 1 in stock

The InfiRay ZH50 V2 Thermal Monocular. As the pioneer that put dual FOV (Field Of View) into thermal optics, InfiRay has hit the market again with the upgraded dual field of view monocular-ZH50 V2. There are four reasons that we need to choose ZH50 V2: One device with an adjustable field of view; No refocus and seamless switch; Ultra-clear Imaging and long-time hunting via 2 battery packs. ZH50 V2 will be the perfect choice if you want to experience the easy dual field-of-view adventure, it is the right tool you need to take your hunt to the next level.

Key Improvements

More professional dual field of view switching, clearer picture quality, longer usage time.

High-performance Detector

ZH50 V2 is equipped with an uncooled vox 12um 640×512 high-resolution sensor featuring NETD ≤25mK. With the powerful sensor and image algorithm, better image quality is provided. is able to capture perfect details in 640×512 detection resolution even in challenging conditions. ZH50 V2 adopts a 1440×1080 FHD AMOLED display which offers better layers and contrast, the observation effect is more excellent. This can detect thermal signatures out to 2600m.

No Refocus & Seamless Switching

Just 2 steps for seamless switching between dual-field of view. Sharp picture quality can be achieved with only one-time focus. Twist the focus ring for seamless switching between dual-field of view, allowing you to maintain sharp image quality without refocusing.

You can utilise the wider FOV with a focal length of 25mm for rapid large-area target search. While you can employ the narrow FOV with a focal length of 50mm for clear target identification.

4X Base Magnification

A high-resolution AMOLED display with a high-magnification optical system provides clearer picture quality and a more excellent observation experience. You can freely choose either 2x or 4x base magnification.

Ease of Use

Zoom +V2 keeps the pocket-size design, IP67 waterproof & dust-proof rating, while optimizing the button material. The improved silicone button can still retain soft touch in cold temperatures.

The comfortable eye cover ensures that you won’t disturb your target at night by leaking light. It also fits your eyes perfectly for comfortable viewing.

HDMI interface to display HD videos on external devices

Designed with HDMI interface (high-definition multimedia interface) uses full digital signal transmission, which not only provides full digital video signal, but also transmits audio at the same time. You can connect this device directly to HD screens, laptops, etc. for high-quality display.

Long Battery Life at Lower Temperatures

Using low-power components, and lower power consumption, with a standard additional battery pack and a replaceable 4400mAh large-capacity lithium battery pack, battery life of up to 20 hours.

Stadiametric Rangefinding

Finder V2 features an up to 800 meters built-in LRF with a margin of error within 1 meter. The response rate is super quick, accurate rangefinding results can be given without lag.

More image modes to cope with different scenarios
The built-in Ultra-clear mode thermal technology of InfiRay is designed for inclement weathers such as rainy, snowy, foggy days, etc., increase thermal imaging clarity and overall details.
5 Color Palettes

ZOOM ZH50 V2 provides more than 5 color palettes for true colorized temperature mapping, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.

32GB Built-in Memory

The ZH50 comes with 32GB of memory for storing 57,000 images or 48 hours of video. You can easily send all your videos and images and transfer them to your smartphone at lightning speed via app.

Explore our other InfiRay thermal and night vision optics here.

InfiRay ZH50 V2 Thermal Monocular Specifications
ModelZH50 V2
Detector Specifications
TypeUncooled Vox
Pixel size,μm12
NETD,mk≤ 25
Frame rate,Hz50
Optical Specifications
Objective Lens,mm25/50
Field of View(H×V),°17.5×13.1 / 8.8×6.6
Linear Field of View(H×V),m at 100m31×23 / 15×12
Magnification, ×2~8 / 4~16
Detection Range,m(Target size:1.7m×0.5m,P(n)=99%)1300 / 2600
Eye Relief,mm20
Exit pupil Diameter,mm5.5
Diopter,D-5 ~ +5
Display Specifications
Battery Power Supply
BatteryReplaceable li-ion battery Pack IBP-1/4400Ah
Max. operating Time(22℃)*,h10
External Power Supply5V (Type C)
Physical Specifications
Wi-Fi/APPSupport (InfiRay outdoor)
Photo/Video RecorderSupport
Memory Capacity32GB
IP ratingIP67
Operating Tempeture,℃-20 ~ +50
