Introducing the InfiRay TS60 the new flagship model from InfiRay Outdoor. Equipped with an immensely powerful high-end thermal sensor. Through the integration of cutting-edge technologies, it delivers unparalleled high-definition image quality, tailored to the requirements of professional hunters.
Advanced Sensor Delivers Excellence
Featuring InfiRay’s cutting-edge, self-developed thermal sensor, it showcases an impressive 1280×1024 pixel resolution and a remarkable NETD of sub 18mk, setting a new standard that enables it to capture even the slightest temperature variations in challenging outdoor environments.
Redefine High-Definition Viewing
Experience unprecedented clarity with the 1.03-inch, 2560×2560 round AMOLED display. Additionally, we’ve gone the extra mile by redesigning 7 distinct color palettes for users to choose from, enhancing observation experience like never before.
Long-distance Detection at Ease
Thanks to its high-end thermal sensor and high-definition display, the TS60 boasts an impressive 3100m long detection range. This means it has the capability to significantly enhance long-range hunting experiences, providing hunters with unprecedented advantages.
Immersive Shooting Experience
While emphasizing aesthetic design, the InfiRay TS60 maintains an impressively lightweight body, ensuring that it won’t cause fatigue even during extended usage. Moreover, it features ergonomic design elements such as soft-touch buttons, maximizing convenience for users and enhancing their overall comfort.
Ultra-long Battery Life
With its built-in 6600mAh battery and the option to add an additional 18650 standard battery (replaceable and rechargeable), the TS60 offers an extended maximum operating time of up to 9 hours (at 22℃), making it ideal for those extended hunting sessions. The TS60 is poised to become your most reliable companion during every ambush and hunting moment.
Rigorous Testing & High-durability
It is crafted using high-strength aluminum alloy materials that have undergone rigorous impact resistance testing. Its exceptional robustness and durability make TS60 a consistent companion for years to come.
Picture-in-Picture Function
The Picture-in-Picture function improves accuracy by providing a 2x-magnified image of the reticle area at the top of the display. It helps to zoom in on a target while maintaining visibility of the entire field of view.

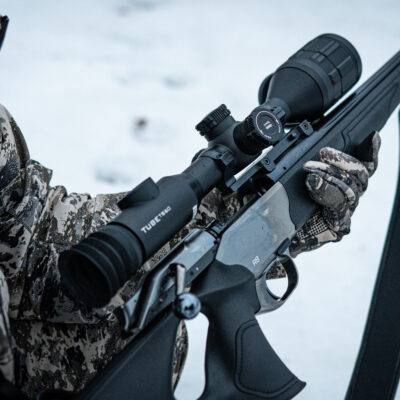

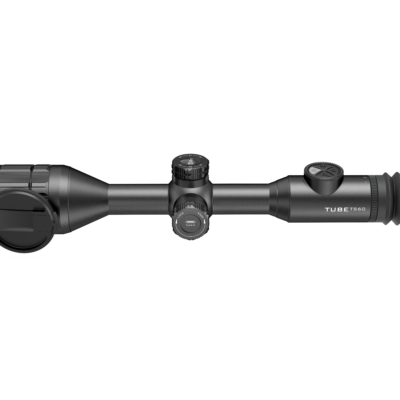

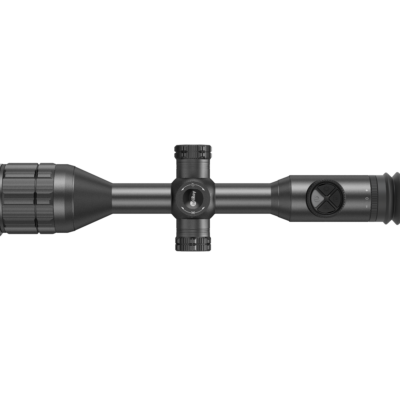

Traditional Day Scope Appearance
The traditional style housing allows for mounting with standard 30mm rings like a typical day scope.
Built-in Microphone (Upgraded)
TS60 is equipped with an upgraded MIC function, therefore customers can record the voice when recording.
128GB
TS60 comes with 128GB of memory for storing 228,000 images or 192 hours of video. The user can easily transfer any videos and images they capture to their smartphone at lightning speed via the app.
Explore our other InfiRay thermal and night vision optics here.

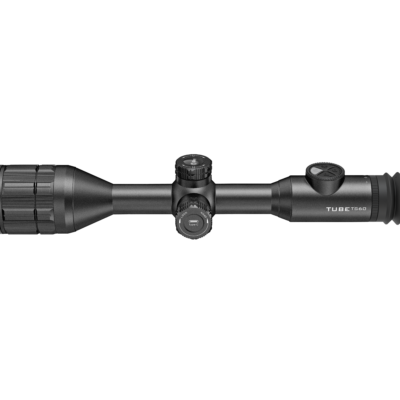

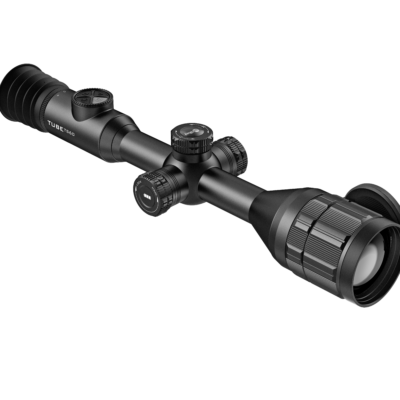

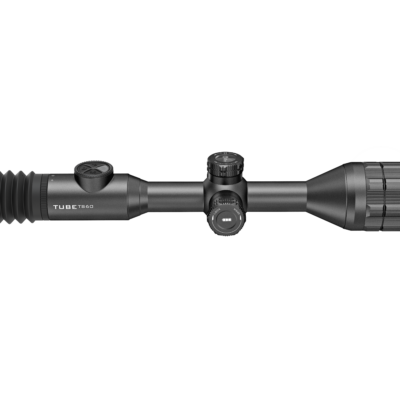

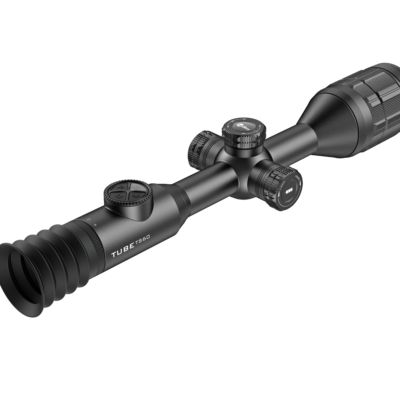

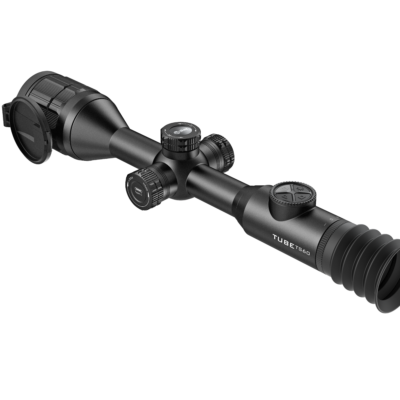

InfiRay TS60 Thermal Rifle Scope
Tube TS60 | |
Detector Specifications | |
Type | Vox |
Resolution, pixel | 1280×1024 |
Pixel Size, μm | 12 |
NETD,mk | ≤18 |
Frame Rate, Hz | 50 |
Optical Specifications | |

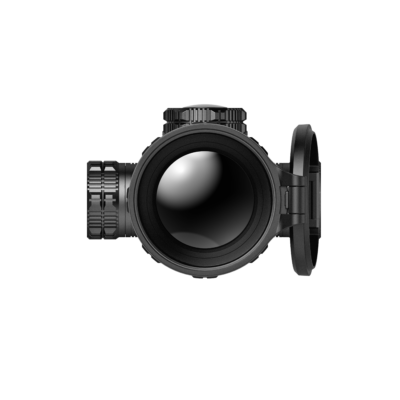

Objective Lens, mm | 60mm/F1.0 |
Field of View(H×V),° | 14.7 × 11.7 |
Linear Field of View(HxV),m at 100m | 25.6 x 20.5 |
Magnification, × | 2 ~ 16 |
Eye Relief, mm | 50 |
Exit pupil Diameter, mm | 6 |
Diopter, D | -5 ~+3.5 |
Detection Range,m(Target size:1.7m×0.5m,P(n)=99%) | 3100 |
Display Specifications | |
Type | AMOLED 1.03” |
Resolution, pixels | 2560×2560 |
Battery Power Supply | |
Battery | Built-in battery / 6600mAh + replaceable 18650 battery/3200mAh |
Max. operating Time(22℃),h | 9 |
External Power Supply | 5V (Type C) |
Physical Specifications | |
Wi-Fi/APP | Support (InfiRay outdoor) |
Photo/Video Recorder | Support |
MIC | Support |
Bluetooth | Support |
Memory Capacity | 128GB |
IP rating | IP67 |
Operating Tempeture,℃ | -20 ~ +50 |
Weight,g | 1000g |
Dimension,mm | 384×104×77 |
Connections and Compatibilities | |
Max. recoil power on rifled weapon (Eo), Joules | 6000 |
Click Value@100m, cm | 2 |
Compatible mount | Standard 30mm rings |
