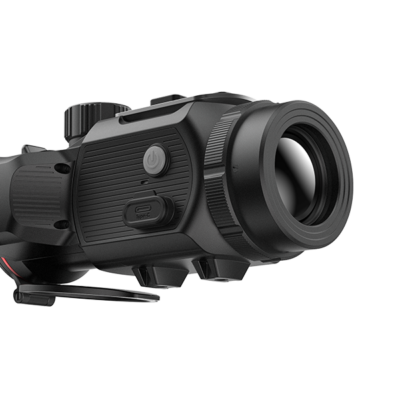

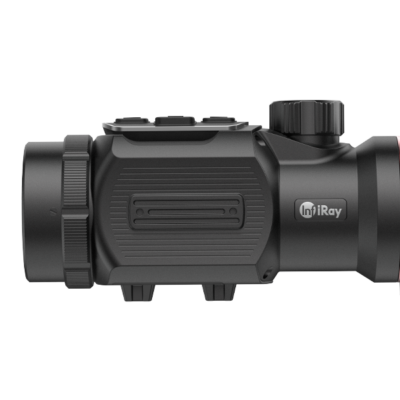

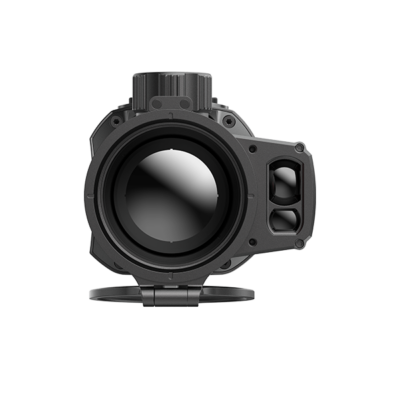

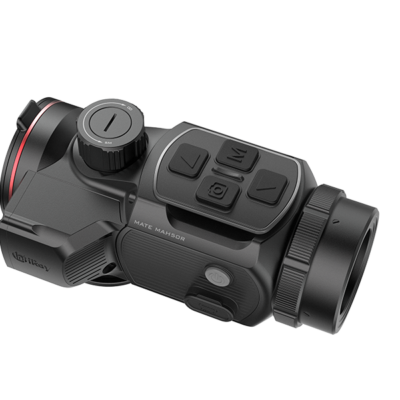

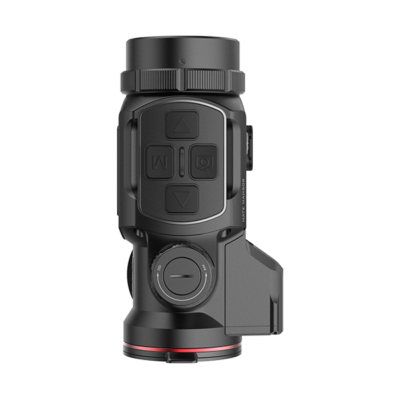

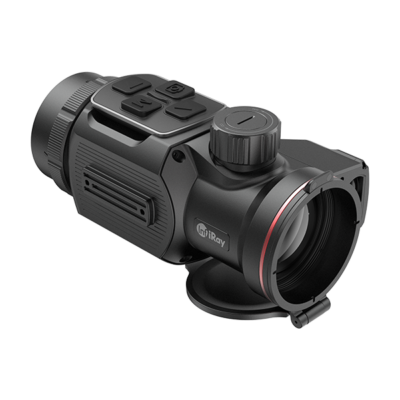

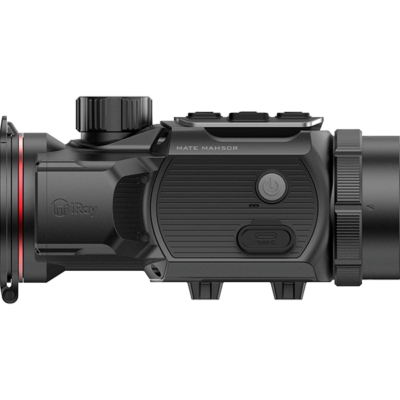

InfiRay MAH50R Thermal Clip On Attachment (MATE Series)


SKU: IRAYMAH50R Category:

The InfiRay MAH50R. Experience a technological transformation in traditional sighting with this single device. The New Mate continues this legacy of innovation, featuring built-in LRF and ballistic calculation capabilities, significantly enhancing the hunting experience

Ultra-clear Thermal Imaging

The new model is equipped with InfiRay’s high-end proprietary thermal sensor (640*512 resolution, 12μm, NETD≤18mk), providing users with crystal-clear thermal imaging. It adapts to day scopes with up to 10× magnification while maintaining excellent image detail.

High-Definition Viewing

The MAH50R is designed for faultless operation in extreme weather and temperature conditions. The 1024×768 AMOLED display resolution helps accelerate this function. Whether or not the environment is  freezing cold or blistering hot, the image retains its contrast and vivid colours without loss of frame rate.

Long-distance Detection at Ease

Thanks to its high-end thermal sensor and high-definition display, the MAH50R boasts an impressive 2600m long detection range. This means it has the capability to significantly enhance long-range hunting experiences, providing hunters with unprecedented advantages.

Mastering Distances with Integrated LRF

Introducing the innovative clip-on thermal product with an integrated Laser Range Finder (LRF) capable of 1,200m. It offers high-precision distance measurement and dynamic display, aiding hunters in quickly and accurately determining distances.

Navigating Accuracy with Ballistic Calculation

Supports strategic and precise ballistic calculations, ensuring each shot is accurately delivered. Hunters can more accurately predict the trajectory of bullets or arrows, thereby increasing the likelihood of hitting the target. It also helps in understanding the potential endpoint of the projectile, reducing the risk of accidental injuries and other safety hazards.

Magnetic Battery Packs

The device comes with additional magnetic battery packs for ease of carrying and installation, extending hunting time without the worry of battery depletion


A high-quality optical imaging system offers a distortion-free image even when used with a 10 times daytime scope.

Sense-based Algorithms

The algorithms improve image quality by setting suitable preset parameters based on different environments, forests, plains, and citys.

Stability and Precise Hunting

Constructed with robust magnesium alloy and rigid structural connections, the device is highly shock-resistant. It exceptionally meets the high-precision standard of ‘POI=1MOA’, ensuring stability and precision in every hunting endeavor.

Explore our other InfiRay thermal and night vision optics here.

InfiRay MAH50R Thermal Rifle Scope
Mate MAH50R
Detector Specifications
Resolution, pixel640×512
Pixel Size, μm12
NETD, mk≤18
Frame Rate, Hz50
Optical Specifications
Objective Lens, mm50mm/F1.1
Field of View (H×V), °8.8 × 7.0
Linear Field of View (HxV), m at 100m15.4 x 12.3
Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2Attachment: 1

Monocular: 1x/2X/4X

Detection range, m (Target size: 1.7m×0.5m, P(n)=99%)2600
Display Specifications
Resolution, pixels1024×768
Battery Power Supply
BatteryBuilt-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2
Max. operating time (22℃),h4+5
External power supply5V (Type C)
Physical Specifications
Wi-Fi/APPSupport (InfiRay outdoor)
Photo/video recorderSupport
Memory capacity32GB
IP ratingIP67
Operating temperature, ℃-20 ~ +50
Weight, g500g
Dimension, mm147*75*73
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules6000
Recommended magnification of the day sight, xG1/G2: 1×-5×

G3/G4: 6×-10×

Click value@100m, cm1.6
Laser rangefinderSupport, 1200m
Ballistic calculationSupport
