Description

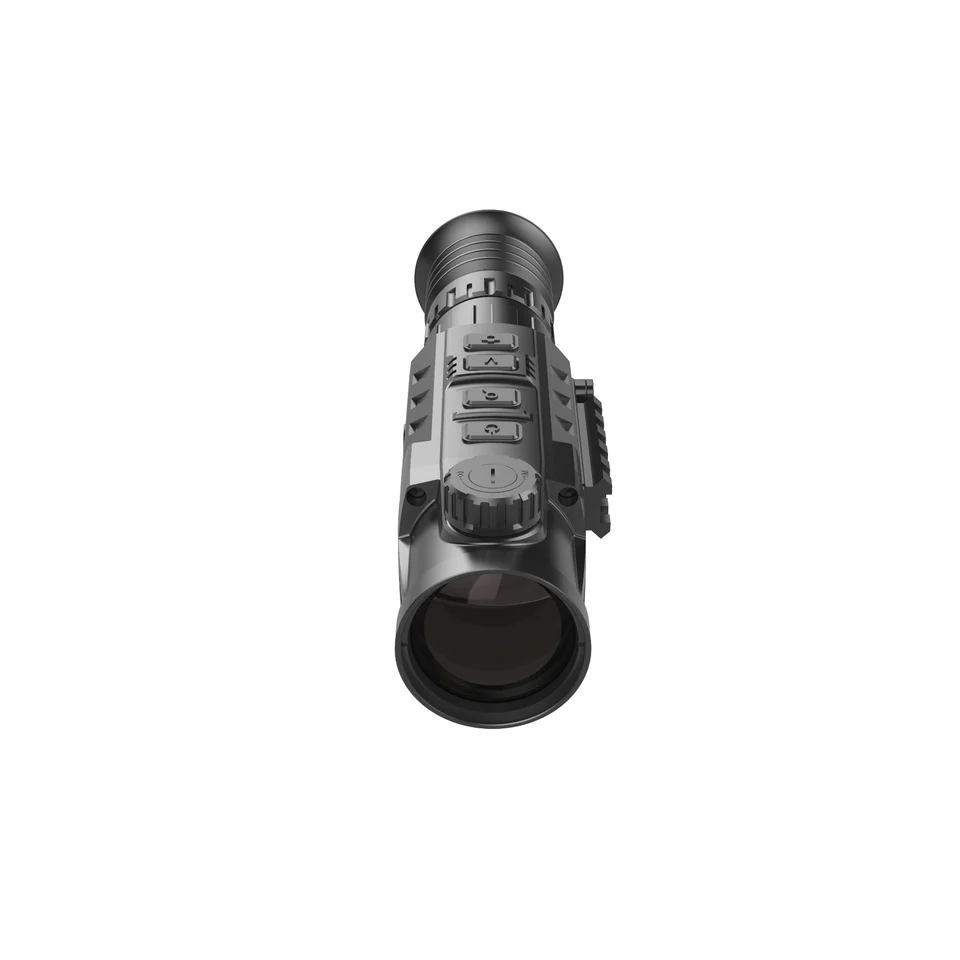

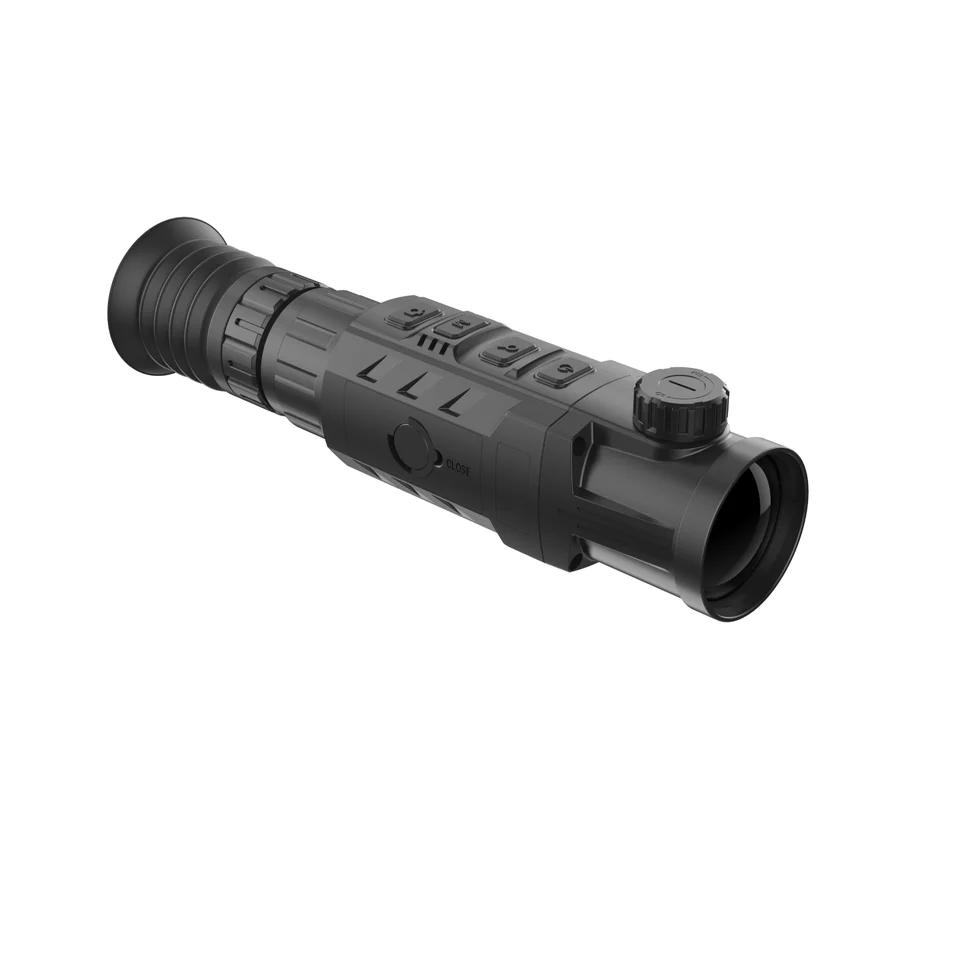

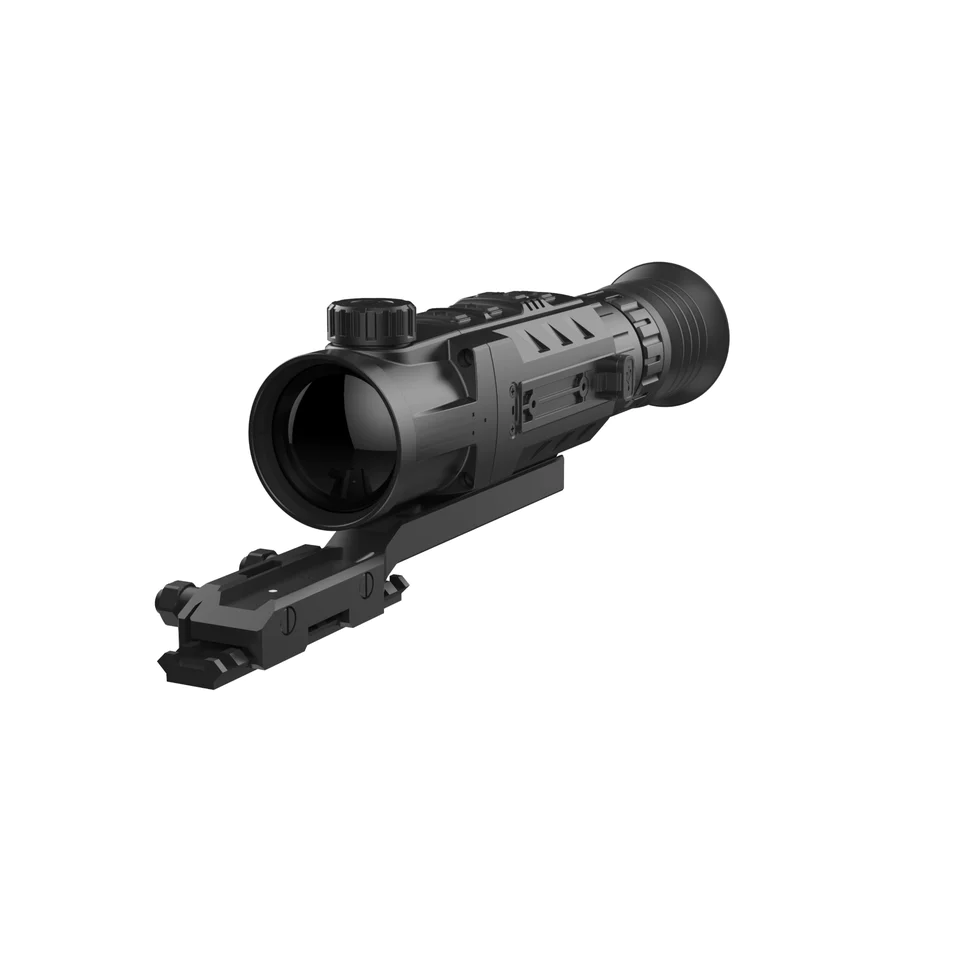

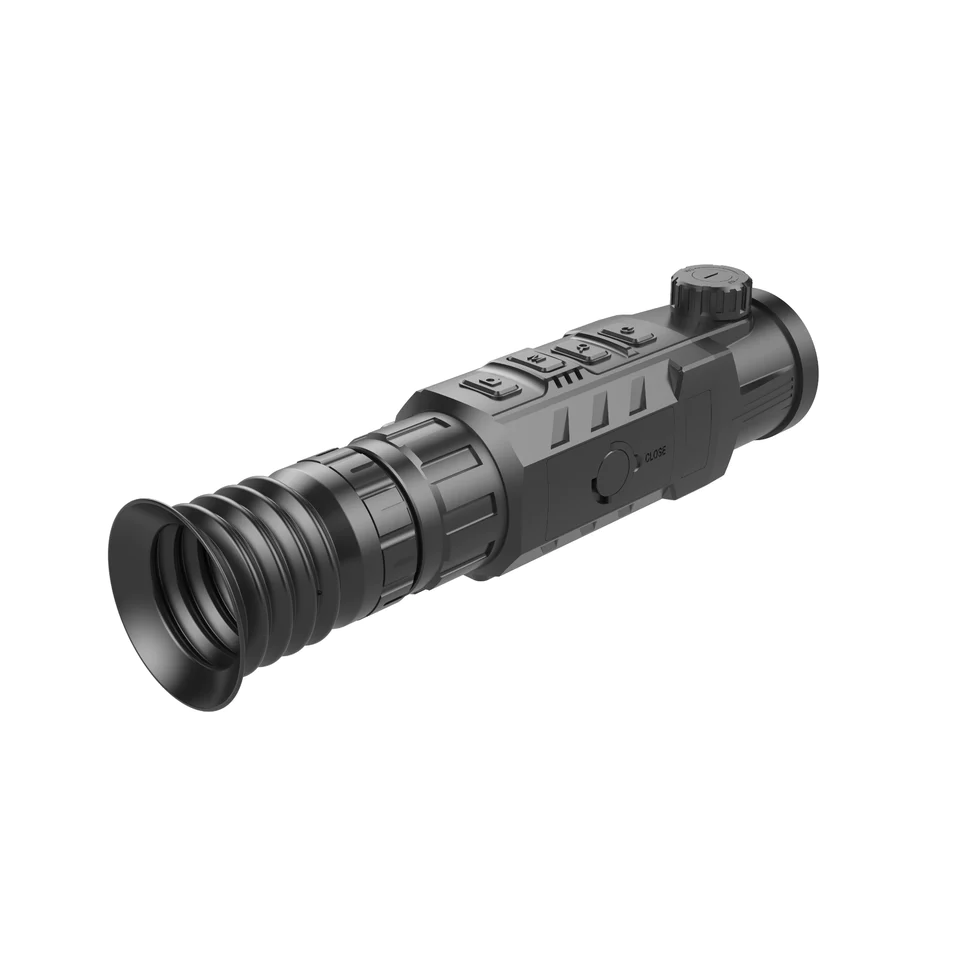

InfiRay RH50 RICO Thermal Rifle Scope – 640×512,12μm VOx ,50Hz, 50mm manual lens,1024×768 OLED Display,IP66
InfiRay RH50 Thermal Imaging Riflescope RICO Series
The Rico series is a multifunctional and highly expandable infrared thermal imaging product. The product is featured with alterable laser rangefinder, detachable battery pack, eyepiece magnification up to 16 times, and comprehensive upgrade of software interface.
Meet the RICO Series
The Rico series is a multifunctional and highly expandable infrared thermal imaging product. The product is additionally featured with alterable laser rangefinder, detachable battery pack, eyepiece magnification up to 16 times, and comprehensive upgrade of software interface. The updated Rico series also offers you advanced image correction and automatic image optimisation.
High Image Quality
The InfiRay RH50 is embedded with an infrared, independently developed high performance VOx detector, which offers you vivid, highly detailed thermal images. It is easier to search for targets in the dark with amazingly sharp image quality.
AMOLED Micro Display
The high contrast AMOLED micro display with HD resolution offers sharp image and vivid colors. The display screen has excellent image quality and gives a flawless performance, even in freezing temperature.
Ultraclear Mode
The built-in ultraclear mode is especially designed for harsh weather conditions, such as in heavy fog and rain. Therefore, it will be more sensitive and display more details.
User-Friendly Interface
Simple and easy to operate is the initial design intention of the Rico series. The vivid icon design offers a visualised guide and translucent background of the menu display, ensuring the user to observe the target unobstructed.
Picture-in-Picture
The Picture-in-Picture function improves accuracy by providing a 2 x-magnified image of the reticle area, at the top of the display. It helps to magnify the target while maintaining visibility of the entire field of view.
High Shock Resistance
The Rico series features exceptionally high shock resistance up to 1000 G.
12 µm Thermal Imaging Sensor
High performance 12 μm pixel pitch detectors are embedded.
Expandable Laser Ranging Function

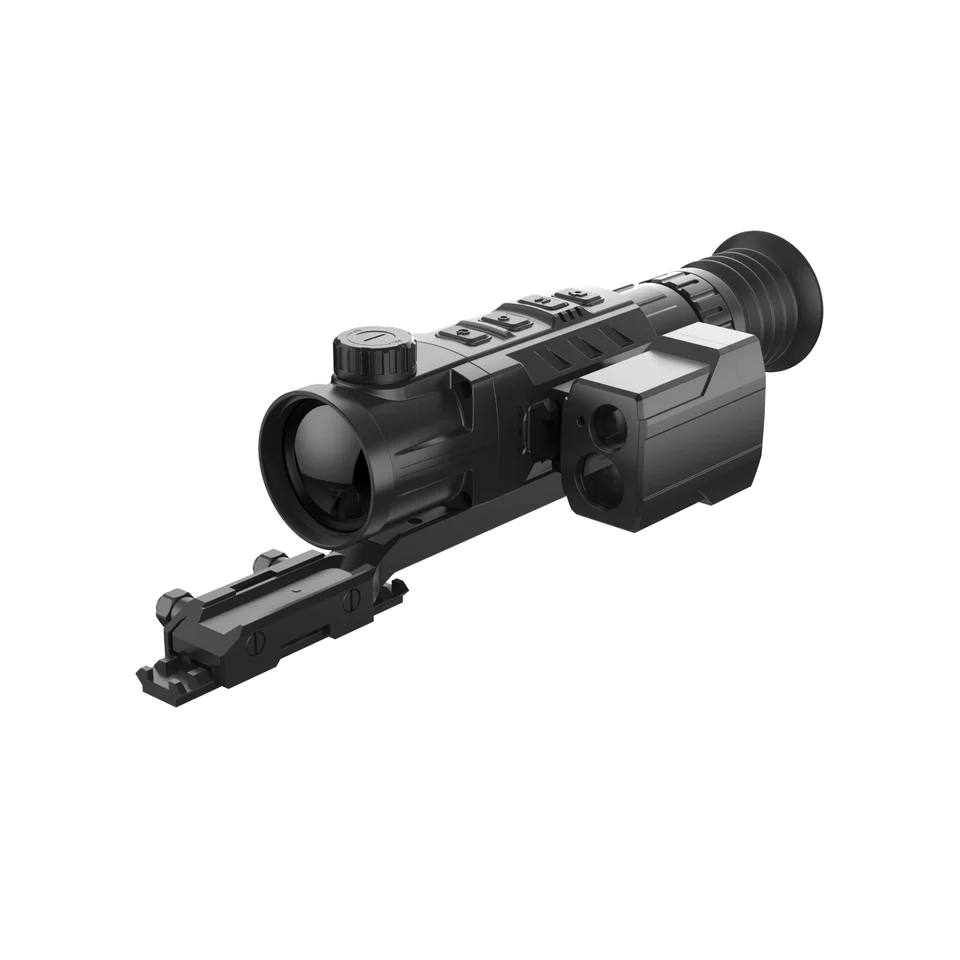

The InfiRay RH50 offers laser ranging capabilities, which accurately capture and display the target distance with an accuracy of ± 1 m and a maximum distance of 1000 m. What’s more the integrated, precision laser rangefinder provides accurate rangefinding in two modes – Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance. The shooter can use the scanning mode to adjust quickly to changing distances for better shot placement.
Long detection range up to 2600 m
Powerful objective lens in combination with professional grade thermal imaging sensor with NETD ≤50 mK provides exceptional detection capabilities. A standard 1.8m tall object can be detected at a 2600 m distance in complete darkness.
Replaceable Battery Pack
The Rico series support a 3.7 V, 4400 mAh large capacity battery pack that operates for 6 hours. With the ability to maintain continuous power supply at any time outdoors, it provides an ideal battery solution. The batteries can be quickly removed and replaced with new ones in a matter of seconds.
Video Recording
The Rico series offer video record and image capture during observation. Also the video and photo can undergo transmission via wired or WiFi connection. Therefore, the Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 32 Gb of internal memory provide many hours of recorded video and tons of photos.
Built-in Accelerometer and Digital Compass
The built-in accelerometer and digital compass improves accuracy by precisely identifying cant and angles. It can indicate the direction and degree of lateral tilting.
Technical Specifications
Model: RH50
Resolution: 640×512 Pixels
Pixel Size: 12μm
NETD: ≤40mk
Frame Refresh Rate: 50Hz
Eye Relief: 55mm
Exit Pupil Diameter: 6mm
Magnification: x 3-12
Objective Lens: F50 / 1.1
Display Resolution: 1024×768 AMOLED
Display Size: 0.39 inch
Laser Rangefinder: Optional
Battery: 3.7V / 4400mAh
Max. Battery Life,(t=25℃): 6h
Degree of protection, IP code: IP67
Built-in memory: 32GB
Weight, (without battery): 840g
Dimension: 250x61x58mm
Detection Range: 2594m
Part No. IRAYRH50
