Description
FL35RFinder Series Thermal Monocular

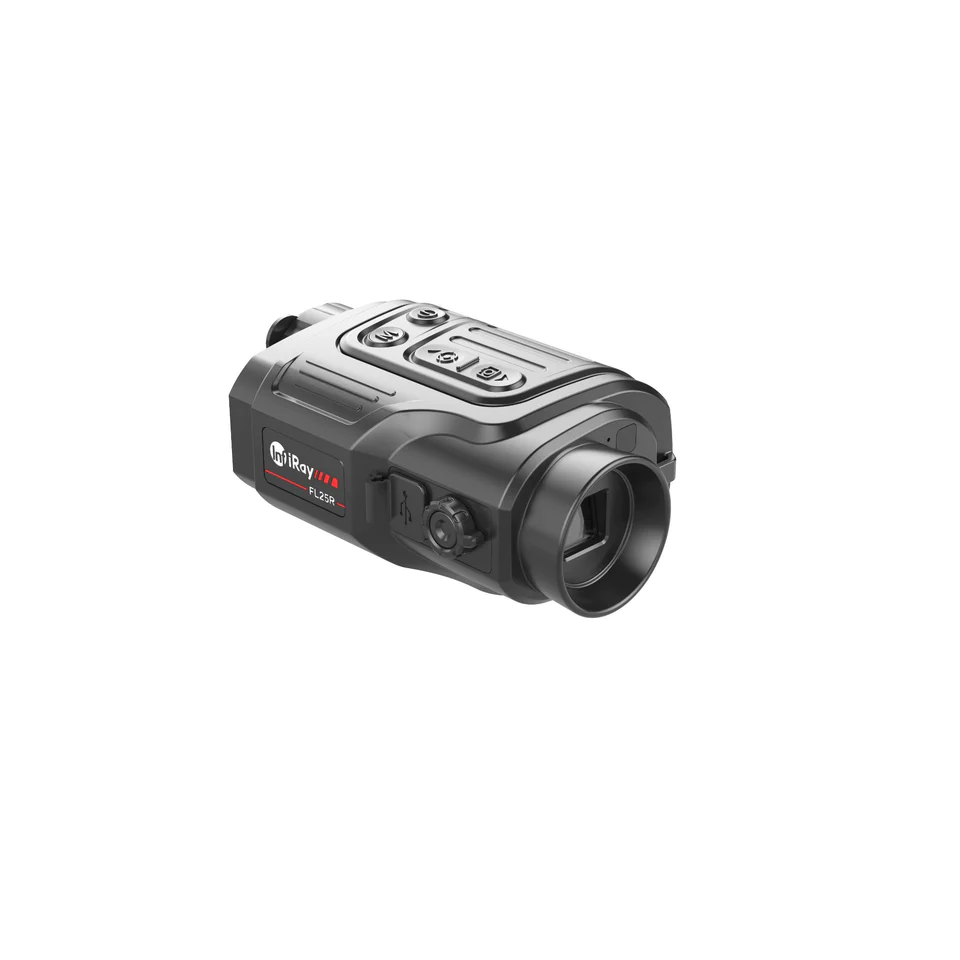

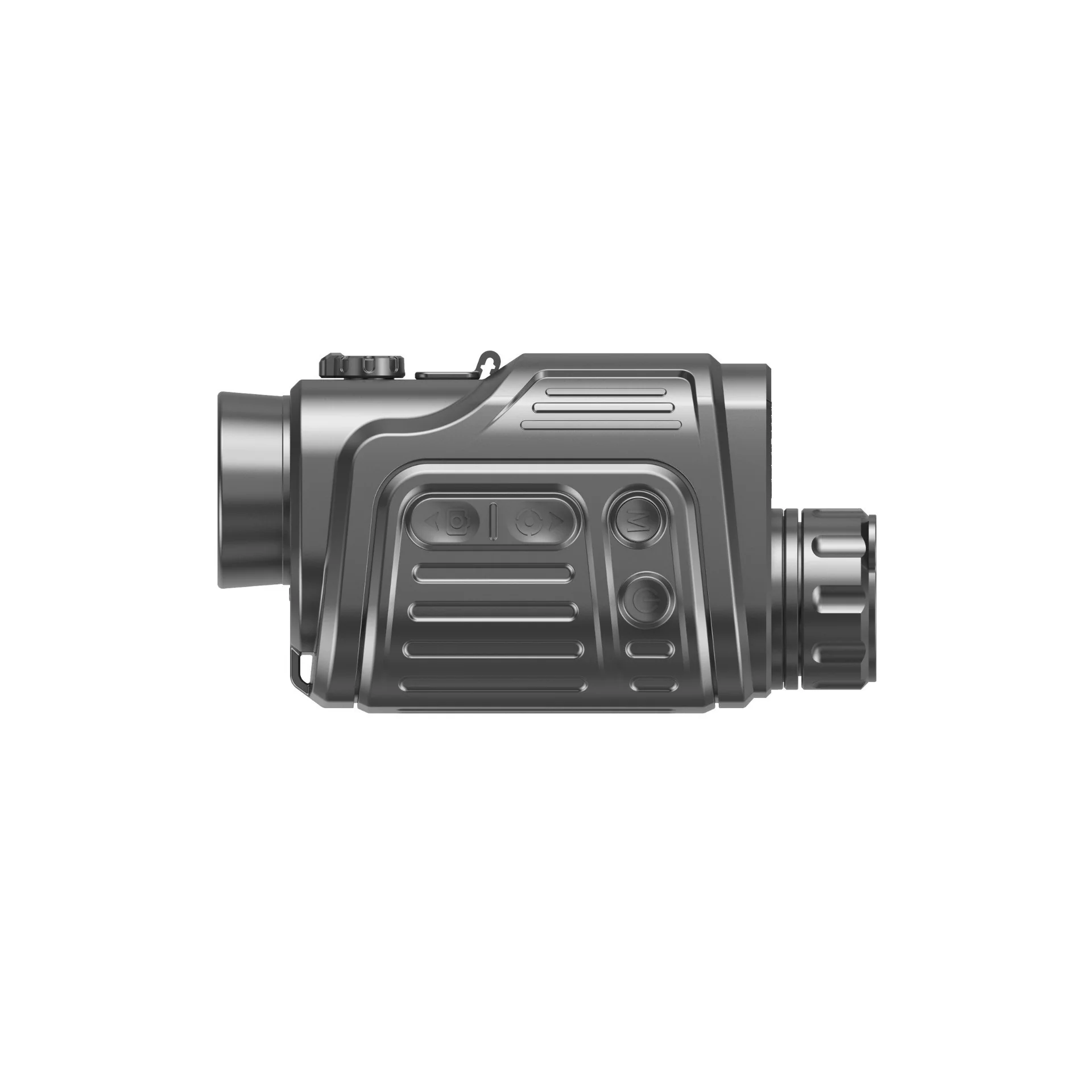

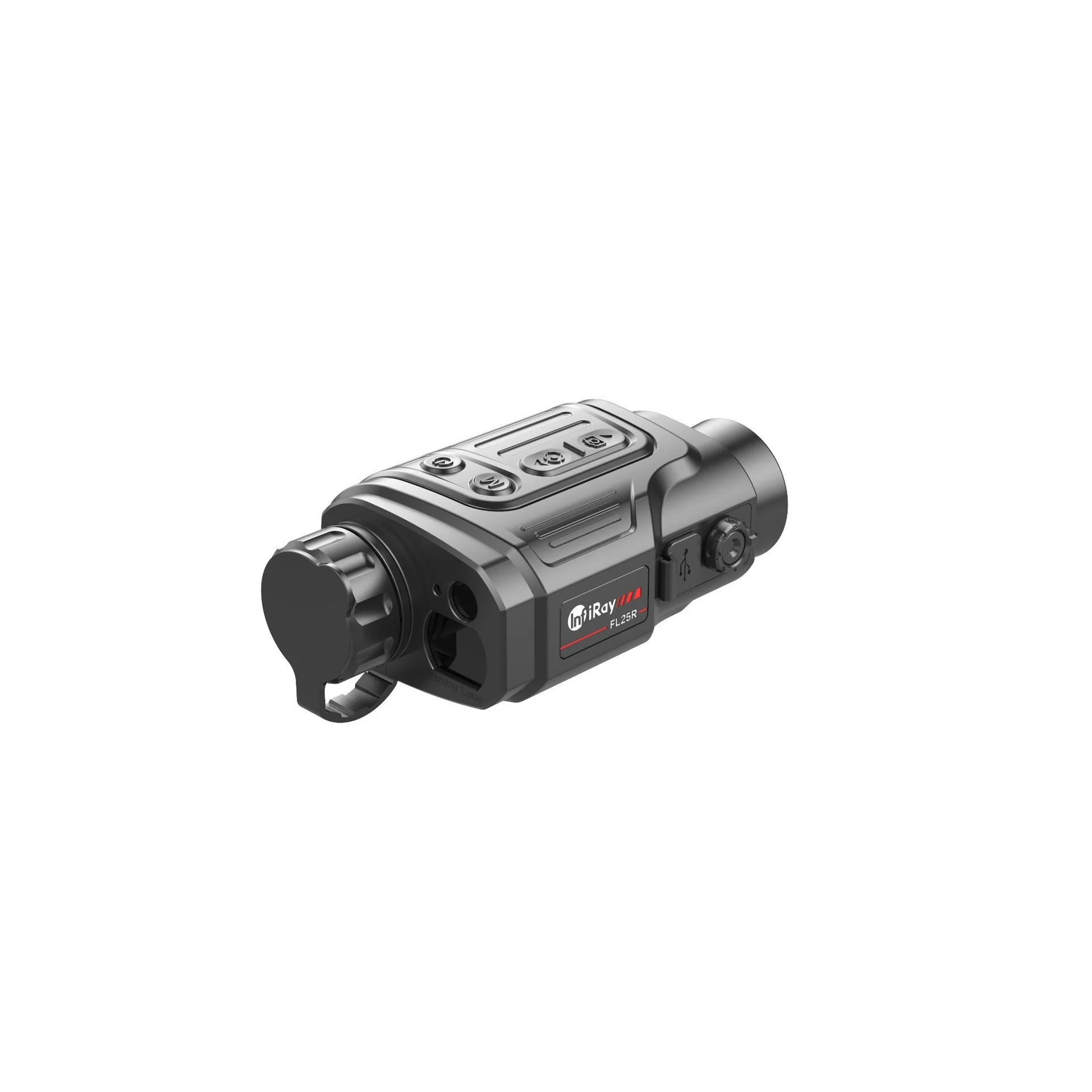

InfiRay FINDER Series Thermal Monocular FL35R – 384×288, 12μm VOx ,<40mk NETD, 50Hz, 35mm lens, 768×1024 OLED display, 1x/2x3x4x magnification, Compass & Msensor, Wi-Fi, built-in Storage 32GB, 6hr Battery life, 1298m range
Thermal Imaging Scope Finder Series
The Finder series products are light and easy to carry, especially suitable for one-handed operation that can be put in a pocket anytime and anywhere. The compact design and built-in laser rangefinder makes the Finder the best choice for outdoor investigation.
Meet Finder Series
The Finder series products are light and easy to carry, especially suitable for one-handed operation that can be put in a pocket anytime and anywhere. The compact design makes the Finder the best choice for outdoor investigation.
High Image Quality
The advanced image processing ability of the InfiRay FL35R detector, which has high performance electronics and optimized infrared optics, creates excellent image clarity and provides better detection and classification, both in day and night.
12 µm Thermal Imaging Sensor
High performance 12 μm pixel pitch detectors are embedded. Powerful objective lens in combination with a 12 µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,7 m (5.58 ft) tall object can be detected at a 1300 m (1420 yds) distance in complete darkness.
Long Detection Range 1298 m
The powerful objective lens combined with a 12 μm professional grade thermal imaging sensor provides exceptional detection capabilities.
High Image Frequency 50 Hz
The 50 Hz refresh rate guarantees that you will capture every moment.
HD Micro Display
1280×960 high-resolution internal display offers sharp image and vivid colors.
Integrated Laser Rangefinder (LRF) 800m
The Finder series has a built-in laser ranging module, which helps to quickly and accurately capture and display the target distance. The ranging accuracy is ± 1 m and the maximum ranging distance is 800m. Accurate distance readings help to quickly assess the size of territory, distance and relief. Integrated, precision laser rangefinder provides accurate rangefinding, it provides both single ranging and continuous ranging modes. Continuous ranging can be quickly activated to adapt to the constantly changing distance of the observed object.
Pocket Machine
The compact size and light weight makes it easy to carry and operate with one hand. It can fit into a pocket anytime and anywhere. The Finder weighs only 320g, which is lighter than conventional rangefinders, but much more powerful. Compact size of thermal imager makes it an optimal portable unit for scouting and spotting.
Infrared Sensor Switch
By sensing the reflection, the infrared sensor switch control the display on and off automatically which saves power and extends the device’s operation time. It also has the advantage of high sensitivity, strong anti-interference ability and stable working performance.
Built-in Video Recorder and WiFi Connection
With built-in storage space, the InfiRay FL35R series support to save the interesting moments in the form of photos or video for sharing with colleagues, friends and family. It can store many hours of recorded video and tens of photos.
Browse our other InfiRay products here.
Technical Specifications
Resolution: 384×288 pixels
Pixel size: 12μm
Sensor: 40mK NETD
Frame refresh rate: 50Hz
Objective Lens: F35/ 1.0
Field of view, degrees: 7.5X5.7°
Optical magnification: 2 ~ 8x
Digital zoom: x1, x2, x3, x4
Display Type: 1024 x 768 OLED
Battery type: Li-ion battery pack, replaceable
Max. battery life (t=25℃): 6h
Laser rangefinder range: 800m ±1m
Amount of built-in memory: 32GB
Dimension: 160x90x50mm
Weight(without replaceable battery): 400g
Detection Range: 1818m
Part No. IRAYFL35R
